Tethered UAV Series
——Long-Endurance Aerial Support for Monitoring, Communication, Lighting, and Emergency Response
CSOPT tethered UAVs are long-endurance aerial platforms designed for continuous hovering and reliable operation in fixed-position missions. Powered by a ground-based tethered power system, the UAV can remain airborne for extended periods without requiring frequent battery replacements. With payload options ranging from lightweight surveillance equipment to communication relay, lighting, inspection, and other customized systems, CSOPT tethered UAVs are suitable for security monitoring, emergency response, temporary communication support, industrial site supervision, and other demanding applications. The platform supports stable flight control, high-precision positioning, flexible payload integration, and backup landing protection, providing dependable aerial support for long-duration field operations.
Key Advantages
Long-Endurance Operation
Flexible Payload Integration
Stable Positioning and Control
Reliable Mission Safety

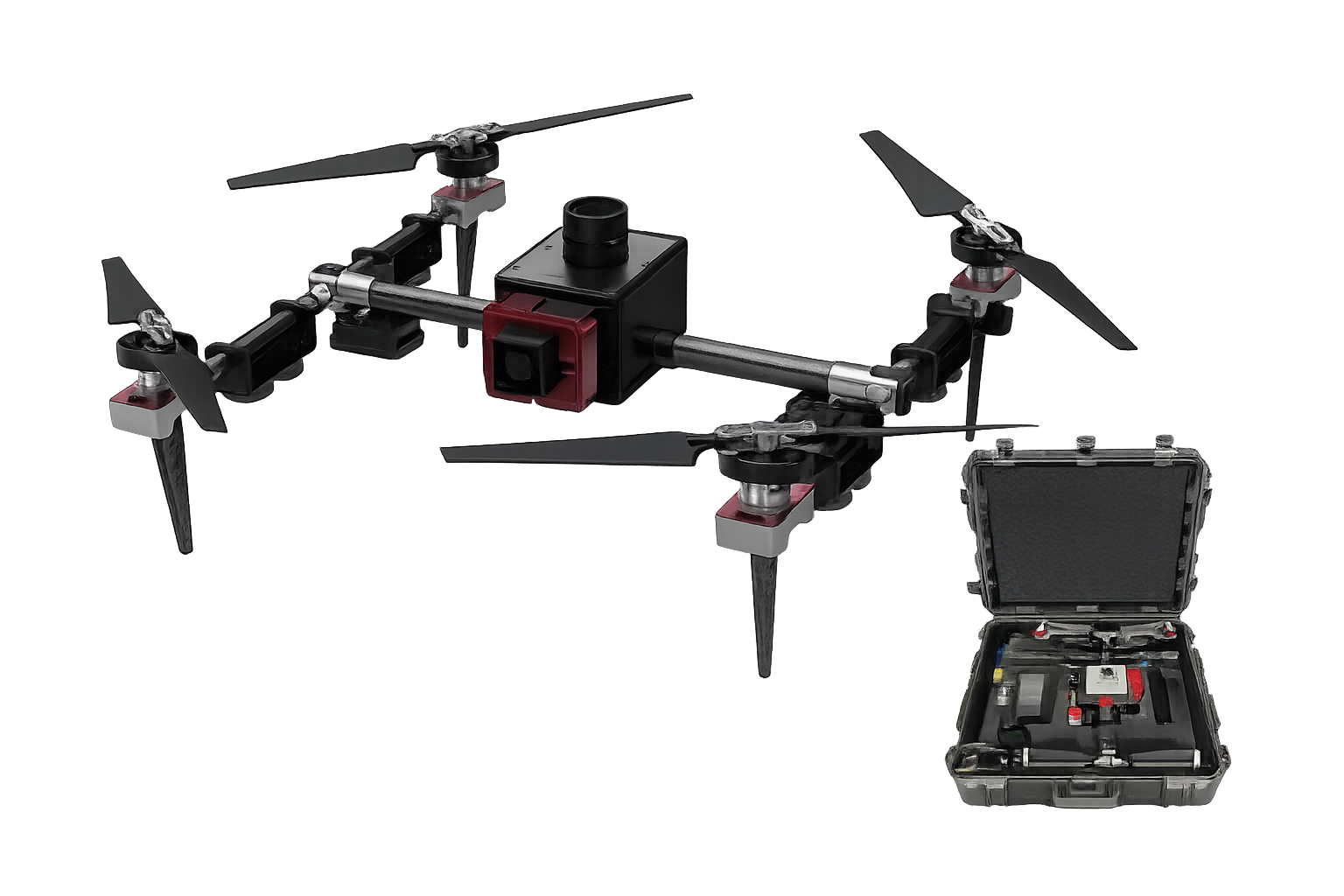

CS002 is a lightweight and compact tethered UAV designed for portable surveillance, temporary monitoring, and rapid-deployment missions. With an approximate empty weight of 3.2 kg and a 650 mm wheelbase, it is easy to transport and deploy in confined operating areas. The platform also supports a backup landing battery, providing approximately five minutes of emergency flight time if the tethered power supply is interrupted.

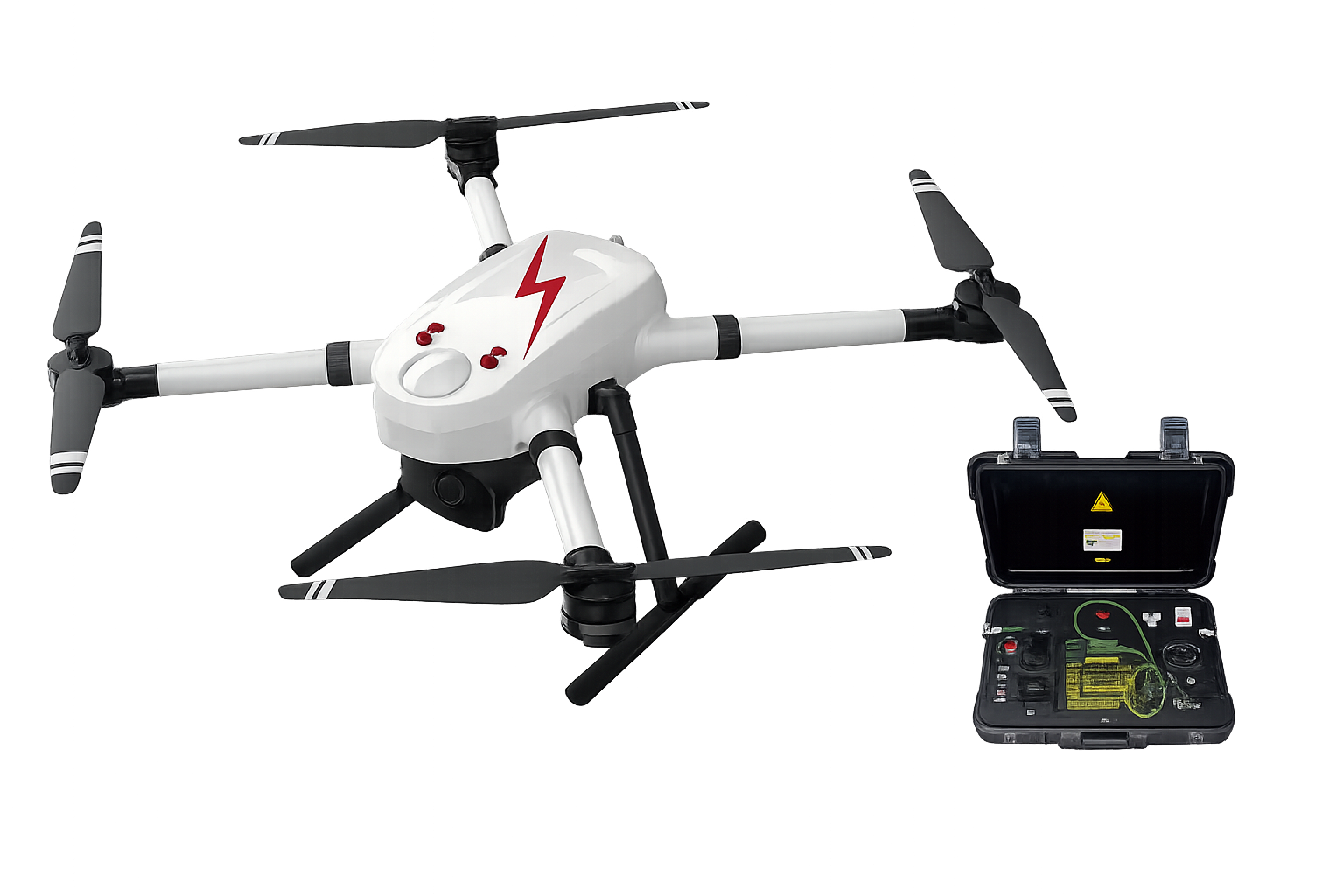

CS002-5 5 kg payload configuration combines a compact foldable structure with increased payload capacity. Its 950 mm wheelbase, 24-inch folding propellers, and folded dimensions of 480 × 390 × 470 mm make it suitable for mobile operations requiring easier transportation and storage. With a standard payload capacity of 5 kg, it can carry compact EO/IR cameras, monitoring equipment, communication devices, or temporary lighting systems.

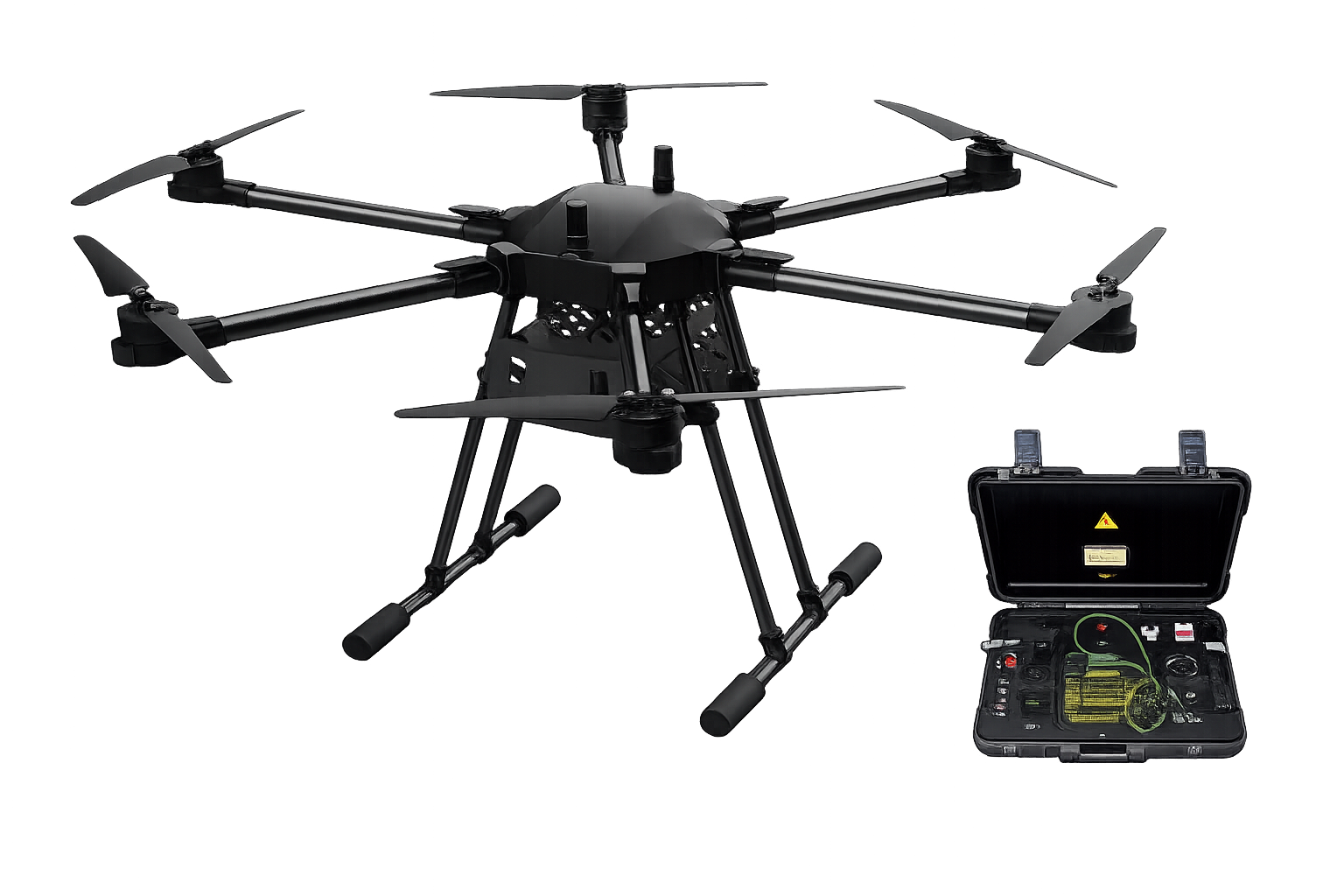

CS0010 is a six-axis tethered UAV developed for medium-payload, long-duration aerial operations. It supports a standard payload of 10 kg and a tethered hovering height of up to 100 m, which can be customized according to project requirements. Its foldable structure improves field transportation and deployment, making it suitable for communication relay, security monitoring, industrial inspection, and emergency command support.
CS0020 provides a 20 kg payload capacity for missions requiring larger sensors and specialized equipment. Its six-axis configuration and 34-inch folding propellers support stable operation under demanding field conditions. With a tethered hovering height of up to 300 m, the platform is suitable for long-range observation, high-power lighting, communication relay, public security, emergency response, and industrial site supervision.
CS0070 is a heavy-duty tethered UAV designed for demanding industrial and emergency applications. Featuring a four-axis, eight-propeller configuration and 49-inch folding propellers, it supports payloads of up to 70 kg. Its 300 m tethered hovering height and high payload capacity allow it to integrate large communication systems, high-power lighting equipment, advanced surveillance payloads, and other mission-specific devices requiring continuous aerial operation.
| Product Image | Model | Axis Configuration | Propeller | Wheelbase | Empty Weight | Standard Payload | Service Ceiling | Expanded Size | Folded Size | Maximum Tethered Operating Height | Limited Ascent / Descent Speed | Backup Landing Battery |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS002 Compact | 4-axis | — | 650 mm | Approx. 3.2 kg | — | ≥4,500 m | — | — | — | 1 m/s |
6S 2200mAh Approx. 5 min emergency landing flight |
|
CS002-5 5 kg Payload Version |
4-axis, 4-propeller | 24-inch folding propeller | 950 mm | 4.5 kg | 5 kg | 5,000 m | 1,100 × 804 × 470 mm | 480 × 390 × 470 mm | — | — | — |
|
CS0010 | 6-axis, 6-propeller | 24-inch folding propeller | 1,300 mm | — | 10 kg | — | 1,200 × 1,200 × 670 mm | 600 × 500 × 670 mm | 100 m, customizable | — | — |
|
CS0020 | 6-axis, 6-propeller | 34-inch folding propeller | 1,800 mm | — | 20 kg | — | 1,940 × 1,700 × 750 mm | 1,160 × 1,080 × 750 mm | 300 m, customizable | — | — |
|
CS0070 | 4-axis, 8-propeller | 49-inch folding propeller | 2,110 mm | — | 70 kg | — | 1,660 × 1,660 × 1,100 mm | 1,165 × 1,165 × 1,100 mm | 300 m, customizable | — | — |
• Structural materials include high-strength carbon fiber and aviation-grade aluminum.
• Endurance can reach 12 hours or more, depending on the selected configuration, payload and operating conditions.
• Selected configurations support RTK high-precision positioning.
• Supported navigation systems may include GPS, BeiDou, Galileo and GLONASS.
• The series can meet Level 7 wind-resistance requirements.
• Product specifications can be customized according to payload, tethered height and application requirements.
Applications
Public Safety and Security Monitoring
Provides continuous aerial observation for large-area surveillance, perimeter security, crowd monitoring, and temporary event protection.
Emergency Communication Relay
Carries communication equipment to establish temporary airborne relay coverage during disasters, rescue operations, and network interruptions.
Emergency Lighting
Supports high-power lighting payloads for nighttime rescue, construction sites, accident response, and temporary outdoor operations.
Traffic and Event Management
Enables long-duration aerial monitoring for traffic control, major public events, exhibitions, and temporary security operations.
Industrial Site Inspection
Suitable for continuous supervision of power facilities, construction sites, mines, pipelines, and other industrial environments.
Border and Coastal Surveillance
Provides stable elevated observation for border patrol, coastal monitoring, port security, and long-duration remote-area missions.
Disaster Response
Supports real-time monitoring, communication, lighting, and situational awareness during floods, earthquakes, fires, and other emergencies.
Temporary Network Coverage
Can carry communication base-station equipment to provide temporary signal coverage in remote areas, large events, and emergency operation zones.
