Fixed Wing VTOL UAV Series
——Long-endurance fixed-wing VTOL UAV platforms for industrial, emergency, maritime, mapping, inspection,
and heavy-payload missions.
CSOPT fixed wing hybrid drone platforms combine the long-range efficiency of fixed-wing flight with vertical takeoff and landing capability. Designed for runway-free deployment, stable flight, and flexible payload integration, the series supports a wide range of industrial and mission-critical applications.
From lightweight portable UAVs to heavy-payload long-endurance platforms, CSOPT provides multiple fixed wing hybrid drone models for inspection, mapping, emergency communication, maritime patrol, search and rescue, cargo delivery, and security operations.
Key Advantages
Runway-Free VTOL Deployment
Long-Endurance Fixed-Wing Flight
Modular Payload Integration
Industrial Mission Reliability
CS0013, CS0020, and CS0032 are compact fixed wing hybrid drone platforms designed for portable deployment, inspection, mapping, and lightweight payload missions. These models are suitable for users who need fast setup, efficient flight, and flexible payload options in field operations.
CS0040 and CS0050 are designed for higher payload capacity and longer mission endurance. These fixed wing hybrid drone platforms can support industrial inspection, mapping, patrol, emergency response, and multi-payload applications.

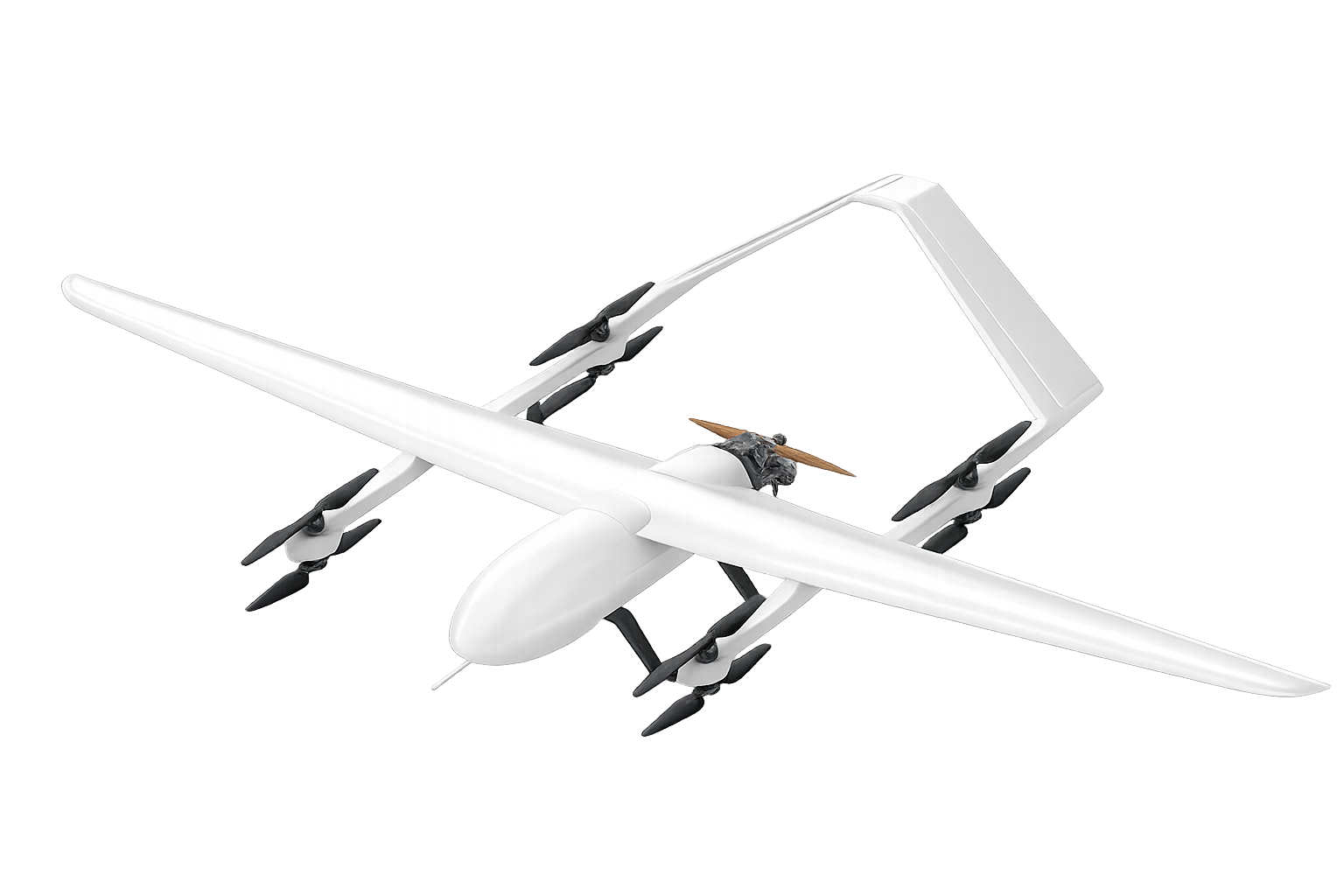

CS0080 is developed for emergency communication, long-distance data transmission, patrol, and search and rescue missions. It can carry satellite communication equipment, 4G/5G communication modules, and other mission payloads to provide communication coverage and video transmission in remote or emergency environments.
CS00150 and CS006 are large fixed wing hybrid drone platforms designed for heavy-payload, long-endurance, and mission-critical operations. They are suitable for carrying advanced EO/IR payloads, communication systems, navigation equipment, synthetic aperture radar, oblique cameras, laser designation systems, and other specialized mission devices.
| Model | Wingspan | Length | Max Takeoff Weight | Standard Payload | Endurance | Cruise Speed | Max Speed | Communication Range | Wind Resistance |
|---|---|---|---|---|---|---|---|---|---|
CS006
|
6.235 m | 4.08 m | 155 kg | 45 kg | 12 h | 110–150 km/h | 190 km/h | 50 km | Level 6 |
CS0013
|
2.25 m | 1.4 m | 13 kg | 1.5 kg | 3 h unloaded | 18–30 m/s | 35 m/s | 30 km | Level 6 |
CS0020
|
3.35 m | 1.85 m | 18 kg | 3 kg | 3 h with 1 kg payload | 18–30 m/s | 40 m/s | 30 km | Level 6 |
CS0032
|
4.0 m | 2.1 m | 30 kg | 5 kg | 3 h unloaded | 22–36 m/s | 40 m/s | 30 km standard / 50 km optional | Level 6 |
CS0040
|
4.8 m | 2.6 m | 60 kg | 15 kg | 3 h unloaded | 25–36 m/s | 40 m/s | 50 km standard / 100 km optional | Level 6 |
CS0050
|
4.8 m | 2.6 m | 55 kg | 15 kg | 8 h | 25–36 m/s | 40 m/s | 50 km standard / 100 km optional | — |
CS0080
|
7.0 m | 3.8 m | 180 kg | 40 kg | 8 h | 120–150 km/h | 160 km/h | 150 km | Level 6 |
CS00150
|
8.5 m | 5.3 m | 280 kg | 80 kg | 12 h | 140–160 km/h | 200 km/h | 150 km | Level 6 |
CSOPT offers a complete fixed wing hybrid drone series covering different payload capacities, flight endurance, communication ranges, and mission configurations. The product line includes compact electric VTOL UAVs for rapid field deployment, medium-payload platforms for industrial inspection and mapping, long-endurance fuel-powered systems, emergency communication UAVs, and heavy-lift platforms for demanding professional operations.
Each fixed wing hybrid drone is designed with modular payload compatibility, reliable flight performance, strong wind resistance, and efficient cruise capability. Depending on the mission, users can select platforms for EO/IR payloads, mapping cameras, communication equipment, search and rescue systems, cargo modules, and other specialized mission devices.
Applications
Mapping
Inspection
Emergency Communication
Maritime Patrol
Cargo Delivery
EO/IR Payload Integration
